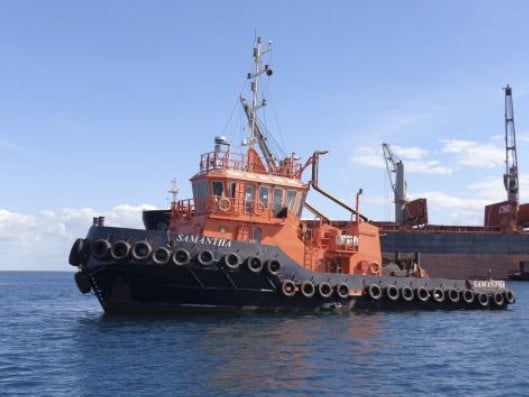

Samantha

Primary Information

Secondary Name: Tug
Vessel Type: Tug
Classification: Tug – Towage / Vessel Assist
IMO: 1111111
MMSI: 503540300
Builder: N/A
Build Location: N/A
Year Built: 2011
Flag: Australian
Trading Area: N/A
Call Sign: N/A
Schematics (GA):

Dimensions

Length Overall: 26 Metres
Beam: 0 Metres
Depth Moulded: 3.7 Metres
Design Draft: 3 Metres
Dead Weight: 0 Tonnes

Machinery

Propulsion: Twin screw with steering nozzles
Main Engines: 2 x Yanmar 6AYM-ETE
Total Power: 0 KW
Gear Box: 2 x Yanmar YXH240L 5.91:1 ratio
Generator: 1 x Yanmar 50 kva & 1 x Cummins 100kva

Speed and Consumption Performances

Full Operating Speed: 10 Knots
Economic Operating: N/A
In Port: N/A
Bollard Pull: 25 ton Tonnes

Capacities

Fuel: 147,000 Litres
Water: 40,000 Litres
Lube Oil: 500 Litres
Dirty Oil: 500 Litres

Deck Equipment

Tow Winch: 20 Tonnes

Accommodation

Nautical and Communication Equipment

Radar System: Yes
Depth Sounder: Yes
GPS: Yes
Compass: Yes
Chart Plotter: Yes
AIS: Yes
VHF Radio: Yes
Searchlight(s): Yes

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
