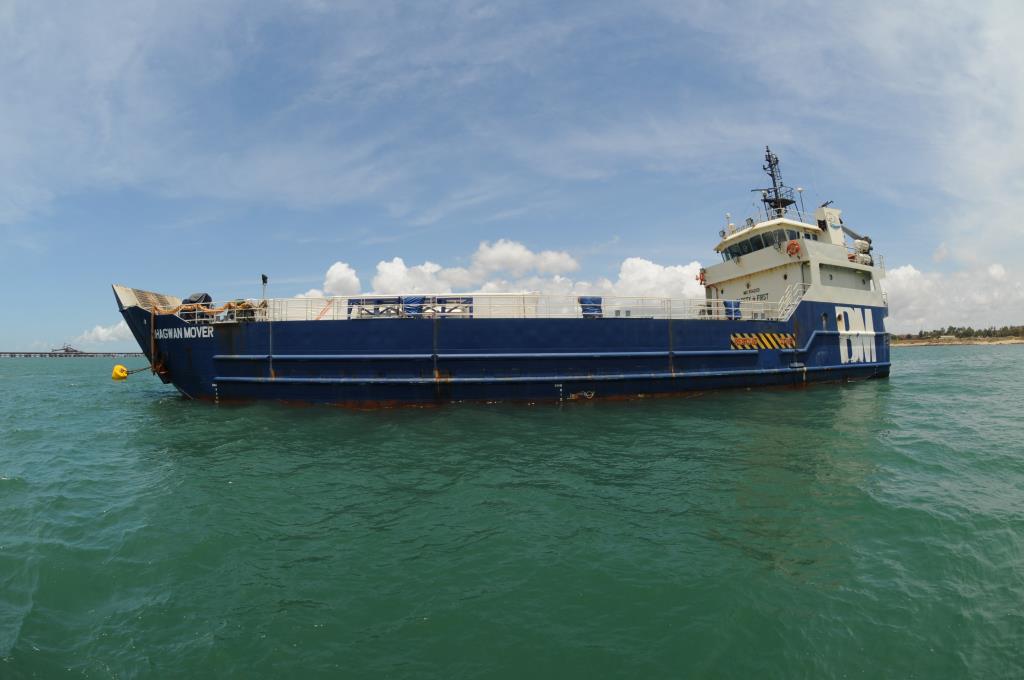

Bhagwan Mover
Primary Information
Secondary Name: LCT Barge
Vessel Type: Landing Craft
Classification: Bureau Veritas: HULL.MACH Deck Ship
IMO: 9542001
MMSI: 503587000
Builder: Piasau Slipway
Build Location: Malaysia
Year Built: 2009
Flag: Australian
Trading Area: Unrestricted Navigation
Call Sign: VNW6163
M & H Number: 6658
Dimensions
Length Overall: 48 Metres
Beam: 12.8 Metres
Depth Moulded: 3.2 Metres
Design Draft: 2.4 Metres
GRT: 619 Tonnes
Dead Weight: 550 Tonnes
Machinery
Propulsion: Twin screw
Main Engines: 2x K19 Cummins
Total Power: 954 KW
Gear Box: Twin Disk
Generator: 2x 6BT Cummins 80kw
Bowthruster: N/A
Speed and Consumption Performances
Full Operating Speed: 10 Kts @ 160 Lts/Hr
Economic Operating: 9 Kts @ 88 Lts/Hr
In Port: 300 Lts/Day
Bollard Pull: N/A Tonnes
Capacities
Fuel: 400,000 Litres
Water: 290,000 Litres
Sullage: 6,600 Litres
Water Ballast: 290,000 Litres
Lube Oil: 2,300 Litres
Dirty Oil: 2,700 Litres
Bilge Water: 2,700 Litres
Clear Deck: 325 Metres Sq.
Deck Load Rating: 10 Tonne/Sq. Metre
Max Deck Cargo: 350 Tonnes
Capacities
Fuel Cargo: 80m³ per Hr @ 6 Bar
Freshwater: 80m³ per Hr @ 4 Bar
Accommodation
Berths: 9
Features: 6 Cabins x 9 Berth
Nautical and Communication Equipment
Depth Sounder: Furuno FE-700
GPS: Furuno GP-150
Compass: Tokimec, Gyro & Daiko Keiki, Magnetic Compass
Chart Plotter: Maxsea
AIS: Furuno FA-150
HF Radio: Furuno FS-2571C
VHF Radio: Furuno FM-8800D
GMDSS: Furuno Felcom 15
Searchlight(s): Color Light CL02-12
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.
Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com
Specification ID: 0 Revision: 0
