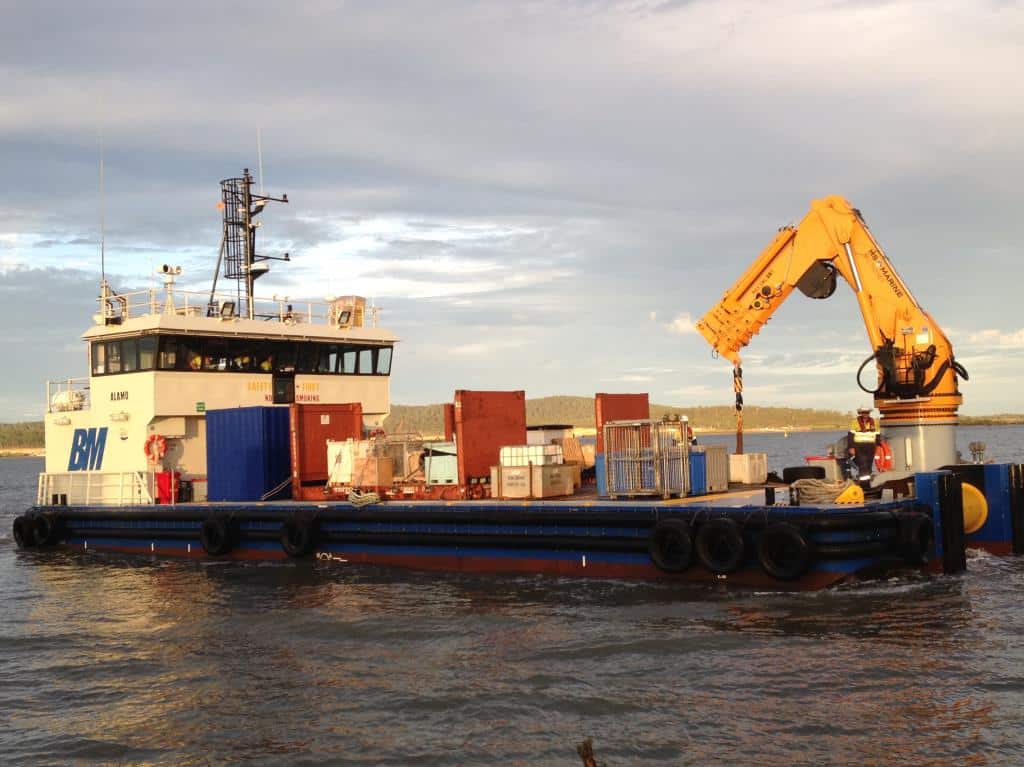

Alamo

Primary Information
Secondary Name: Work Barge
Vessel Type: Utility Vessel
Classification:DCV 2B
MMSI: 503596400
Builder: Strategic Marine
Build Location: Vietnam
Year Built: 2011
Flag: Australian
Trading Area: Offshore to 100nm
Call Sign: VJN 3661
M & H Number: 6717
Dimensions
Length Overall: 27.2 Metres
Beam: 11 Metres
Depth Moulded: 3.3 Metres
Design Draft: 2 Metres
GRT: 290 Tonnes
Dead Weight: 187.5 Tonnes
Machinery
Propulsion: 2X Azimuth Stern Drives
Main Engines: 2x Cummins K19-M3
Total Power: 2x 447kW @ 1800rpm KW
Gear Box: 2x
Generator: 2x Cummins (John Deer)
Speed and Consumption Performances
Full Operating Speed: 7Kts @ 155Hr
Economic Operating: 5Kts @ 135Hr
In Port: 3Lts/Hr
Bollard Pull: 10t Tonnes
Capacities
Fuel: 106,000 Litres
Water: 125,000 Litres
Sullage: 1,000 Litres
Water Ballast: 91,800 Litres
Lube Oil: 1,000 Litres
Dirty Oil: 1,500 Litres
Clear Deck: 125 Metres Sq.
Max Deck Cargo: 125 Tonnes
Cargo Discharge Pumps
Fuel Cargo: 40Ph
Freshwater: 40Ph
Deck Equipment
Anchor Handling Winch: 100 Tonnes
Tow Hook: 100 Tonnes
Crane: 20 Tonnes
Accommodation
Berths: 2
Features: Day Bunks Only
Nautical and Communication Equipment
Radar System: Furuno 36n m
Depth Sounder: Furuno 50/200kw
GPS: Furuno Gp32
Compass: Daiko Keiki
Chart Plotter: Maxsea
AIS: Furuno FA150
HF Radio: Icom IC-M801E
VHF Radio: Icom IC-M505
UHF_Radio: Motorola GM339
Searchlight(s): Colorlight Cl25-12
Other: Auto Pilot: Simrad AP50
Miscellaneous Equipment
Description:
Tugger Winches: 2x 5T (If required) Crane: HS Marine AKC 290 HE3 SWL @ 7.9MTS – 19.55T SWL @15.15MTS – 9.34T
