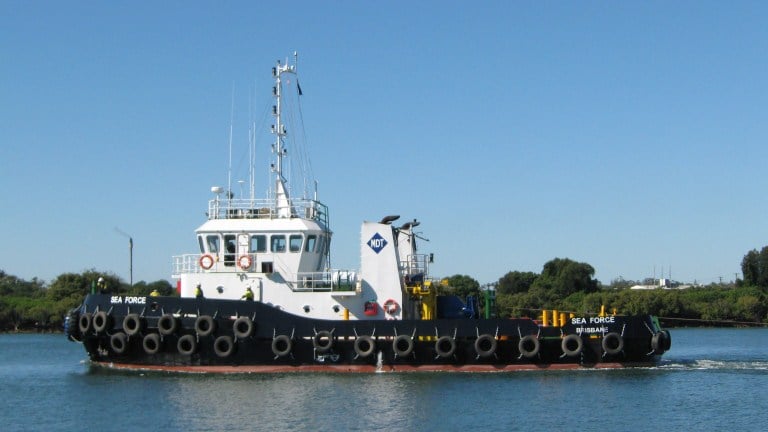

Sea Force

Machinery & Propulsion

Main Engines: 2 x Units Mitsubishi S6R2-MTK3 759 Kw @ 1406 Rpm
Main Generator: 2 x Cummins 78KW
Main Gearbox: Reintjes WAF562L 5.05:1

Pumps

Bilge & Ballast Pump: 28M³/Hr @ 35m
GS & Fire Pump: 28M³/Hr @ 35m
Fuel Oil Transfer Pump: 5M³/Hr @ 10m
FW Pressure Set: Pedrollo
SW Pressure Set: Pedrollo 20m³/Hr @ 50m head
Emergency Fire Pump: 2″ Portable Diesel Engine

Performance

Speed: 11 Knots
Bollard Pull: 26.25T
Accommodation: 12
Class: NKK

Main Dimensions

Length Overall: 30m
Breadth Mld: 9m
Depth Mld: 4.6m
Draft: 3.8m

Tank Capacities (Approx)

Fuel Oil: 245m3
Fresh Water:
74m3
Ballast:
73.5m3

Deck Equipment

Anchor Windlass: 19mm @ 2T tons nominal pull
Towing Winch: Nominal Pull 30T/Brake hold 80T
Towing Hook: SWL 40T
Capstan: 1.5T

Others

Propeller Shaft: 177.8mm (7″diameter)
Propeller: 2m Dia, Fixed Pitch (Kaplan Type)
Air-Condition: Split Unit
Oily Water Separator: CYF-0.25Y/0.25m3 hr
Sewage Treatment Plant: 15 Person

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
