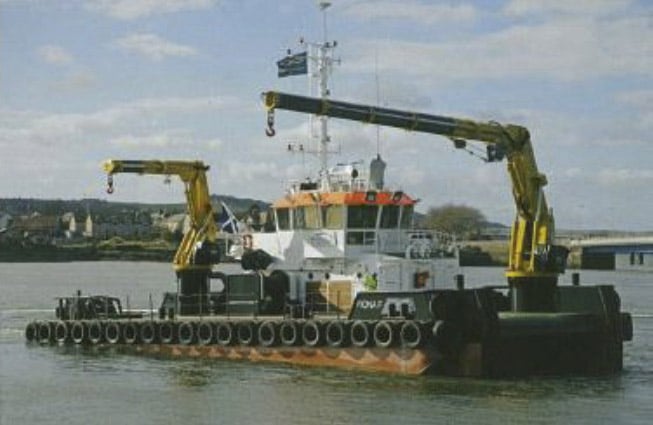

Fiona F

Primary Information
Secondary Name:
Vessel Type:
Classification:
IMO: 1111111
MMSI: 503011690
Builder: N/A
Build Location: N/A
Year Built: 2011
Flag: Australia
Trading Area: N/A
Call Sign: N/A
Dimensions
Length Overall: 26.5 Metres
Beam: 11 Metres
Design Draft: 2.4 Metres
Dead Weight: 0 Tonnes
Machinery
Propulsion: Twin Fixed Pitch Propellers with Kort Nozzles
Main Engines: 2 x C32 Cat – 980
Total Power: 0 KW
Gear Box: Twin Disc
Generator: 2 Caterpillar C9 – 400 Volt 250Kva
Bowthruster: N/A
Speed and Consumption Performances
Full Operating Speed: 10 Knots
Economic Operating: N/A
In Port: N/A
Bollard Pull:
Capacities
Fuel: 100,000 Litres
Water: 60,000 Litres
Lube Oil: 1,740 Litres
Dirty Oil: 1,840 Litres
Bilge Water: 14,500 Litres
Deck Equipment
Tow Winch: 80 Tonnes
Tugger/Work Winch: 15 Tonnes
Accommodation
Nautical and Communication Equipment
Radar System: Yes
GPS: Yes
Compass: Yes
AIS: Yes
VHF Radio: Yes
Searchlight(s): Yes
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.
Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com
Specification ID: 0 Revision: 0
