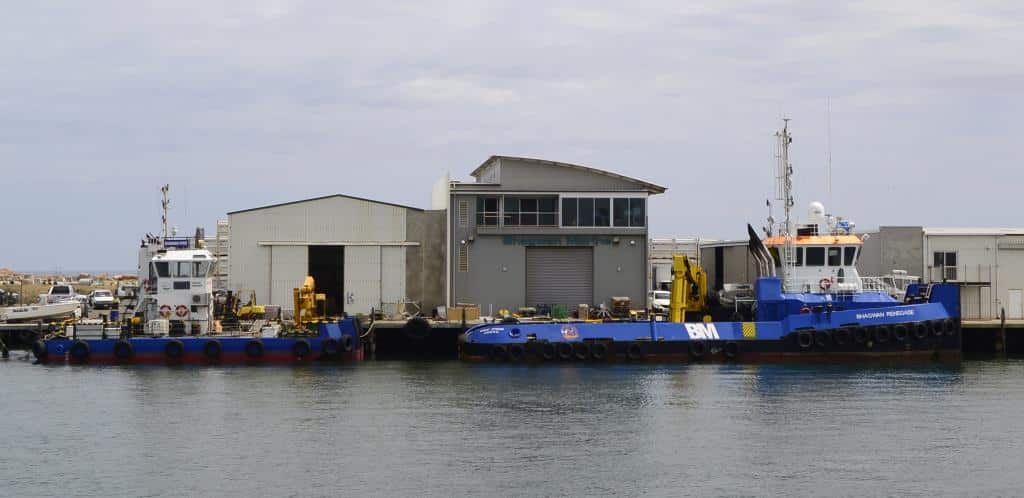

Bhagwan Hyde
Primary Information
Secondary Name: Damen 1908
Vessel Type:
Classification: DCV – USL 2C
MMSI: 503706100
Builder: Damen
Build Location: Holland
Year Built: 2010
Flag: Australian
Trading Area: Offshore to 50 nm
Call Sign: VHCD
M & H Number: 7010
No. Passengers/Special Personnel: 4
No. Crew: 4
Dimensions
Length Overall: 18.7 Metres
Beam: 8.1 Metres
Depth Moulded: 2.8 Metres
Design Draft: 2.3 Metres
GRT: 99 Tonnes
Dead Weight: 66 Tonnes
Machinery
Propulsion: Twin Screw, Fixed Nozzles
Main Engines: 2x Caterpillar
Total Power: 714 KW
Gear Box: 2x Reintjes 4.56:1
Generator:
Speed and Consumption Performances
Full Operating Speed: 7.5 Kts
Economic Operating: 6.5 Kts
In Port: 75
Capacities
Fuel: 54,000 Litres
Water: 14,800 Litres
Sullage: 900 Litres
Water Ballast: 23,000 Litres
Lube Oil: 900 Litres
Dirty Oil: 800 Litres
Bilge Water: 800 Litres
Clear Deck: 30 Metres Sq.
Deck Load Rating: 5 Tonne/Sq. Metre
Cargo Discharge Pumps
Fuel Cargo: 20 Ton/Hr @ 1.25 Bar
Freshwater: 12M³/Hr
Deck Equipment
Anchor Handling Winch: 15 Tonnes
Crane: 7 Tonnes
Accommodation
Nautical and Communication Equipment
Radar System: Furuno FR-8062; 0.125nm to 72nm
Depth Sounder: Furuno LS-6100
GPS: Navnet VX2
Compass: 1x Richie HB-741
Chart Plotter: Furuno Navnet VX2
AIS: Yes
HF Radio: JRC; JBS-196 SSB Radiotelephone
VHF Radio: Icom Marine VHF IC-M423 & Sailor Compact VHF RT2048
Searchlight(s): Theunissen WS80
Other: Furuno Loud Hailer LH-3000
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.
Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com
Specification ID: 0 Revision: 0
