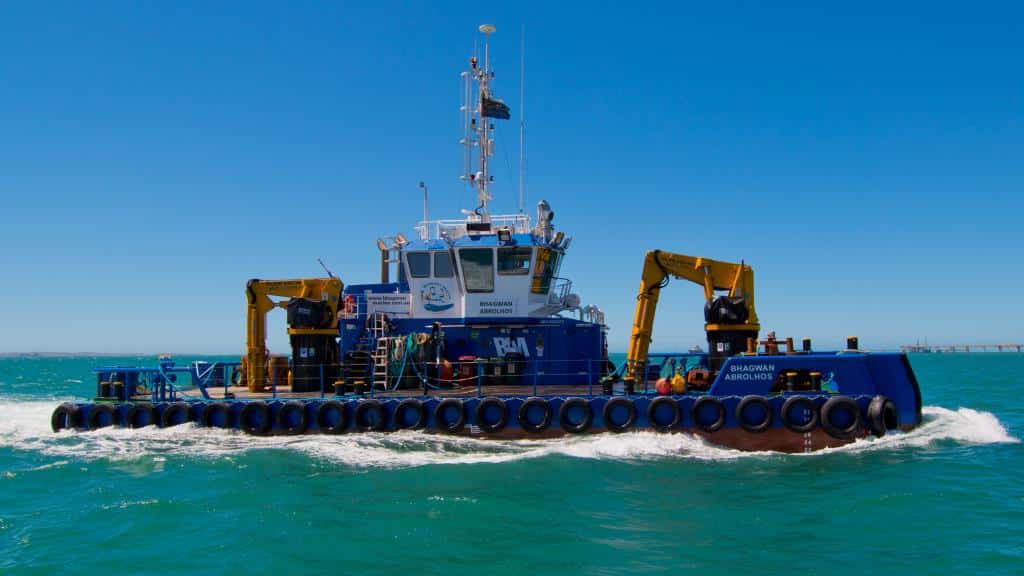

Bhagwan Abrolhos

Primary Information
Secondary Name:
Vessel Type:
Classification: Bureau Veritas: HULL · MACH Tug Unrestricted Navigation AUT-UMS
IMO: 9653173
MMSI: 503698900
Builder: Neptune Shipyards BW
Build Location: Rotterdam
Year Built: 2012
Flag: Australian
Trading Area: Unrestricted Navigation
Call Sign: VJN 3948
Dimensions
Length Overall: 26.8 Metres
Beam: 11 Metres
Depth Moulded: 2.6 Metres
Design Draft: 2.5 Metres
GRT: 255 Tonnes
Dead Weight: 215.5 Tonnes
Machinery
Propulsion: Fixed Pitch Propellers & Nozzles
Main Engines: 2x Cummins QSK 38M
Total Power: 2088 KW
Gear Box: Masson Twin Disc Reduction MMW5200
Generator: 2x Caterpillar C9 250
Bowthruster: Van Ballegooy 360º Rotation 280
Speed and Consumption Performances
Propulsion: Fixed Pitch Propellers & Nozzles
Main Engines: 2x Cummins QSK 38M
Total Power: 2088 KW
Gear Box: Masson Twin Disc Reduction MMW5200
Generator: 2x Caterpillar C9 250
Bowthruster: Van Ballegooy 360º Rotation 280
Capacities
Fuel: 105,000 Litres
Water: 47,500 Litres
Sullage: 5,730 Litres
Water Ballast: 44,000 Litres
Lube Oil: 6,500 Litres
Dirty Oil: 1,800 Litres
Bilge Water: 8,250 Litres
Clear Deck: 90 Metres Sq.
Deck Load Rating: 6 Tonne/Sq. Metre
Max Deck Cargo: 45 Tonnes
Cargo Discharge Pumps
Fuel Cargo: 35 M³ per Hr
Freshwater: 35 M³ per Hr
Deck Equipment
Tow Winch: 35 Tonnes
Anchor Handling Winch: 80 Tonnes
Tow Hook: 45 Tonnes
Tugger/Work Winch: 12 Tonnes
Tow Pins: 172 Tonnes
Crane: 230 Tonnes
Accommodation
Berths: 7
Nautical and Communication Equipment
Depth Sounder: Furuno Navigational Sounder FE700
GPS: Furuno DS 80
DGPS: Furuno GP 150 D
Compass: Furuno SC 50 Electronic, C&P Type 11 Magnetic
Chart Plotter: Furuno GPS Navigator GPS150
AIS: Furuno Universal
HF Radio: Furuno
VHF Radio: 2x Sailor 6522 DSC
GMDSS: 1x Furno Navtex NX 70 – 2 X Inmarsat-C Duplication
Searchlight(s): 1x 1300 watts
Other: Auto Pilot: SeaPilot 75
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.
Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com
Specification ID: 0 Revision: 0
