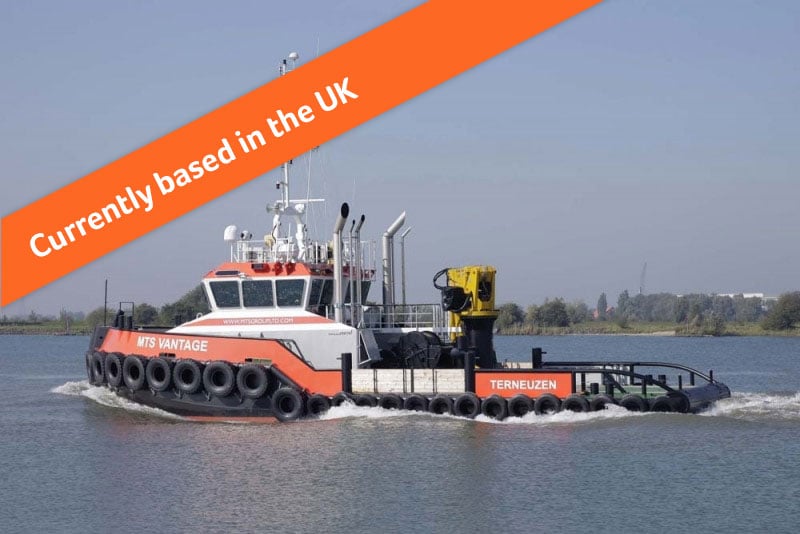

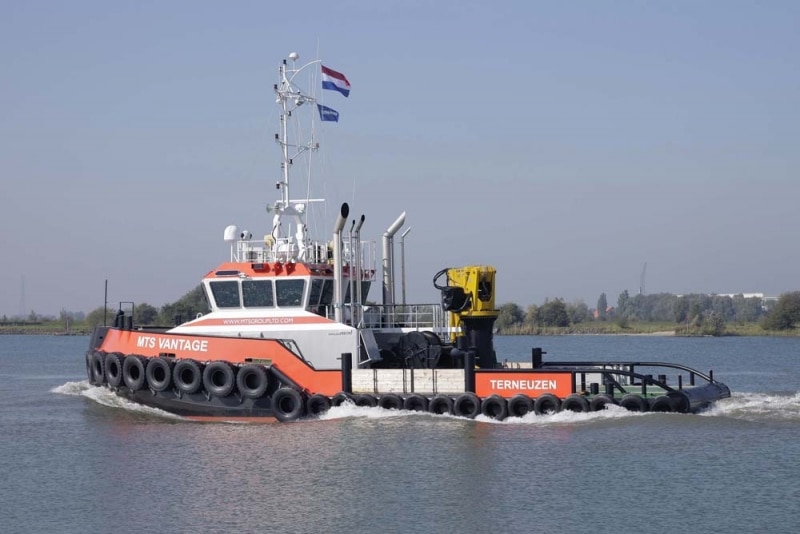

MTS Vantage (UK)

General

Type of Vessel : Damen Shoalbuster 2709
Builder : Damen Shipyards Hardinxveld
Building Year : 2011
Basic Functions : Towing, mooring, Anchor handling, Dredging support
IMO Number : 9585261
Gross Tonnage : 221
Call sign : PCNE

Propulsion System

Main Engines : 2 x CAT Type 3512B TTA
Total Power : 3000 hp (2238 kW) at 1600rpm
Gearboxes : 2 x Reintjes WAF 664 Ł/5.95:1
Propulsion : 2 x Promarin fixed pitch propellers
Diameter : 2 x 2100 mm in Optima nozzles
Bow Thruster : 200 hp, hydraulically driven

Auxiliary Equipment

Generator Sets : 2x Caterpillar C-4.4 TA
Capacity : 2x 86.3 kva
Transfer Pumps : For water & fuel: make SIHI, 32 m3 / hr
Fuel Separator : Alfa Laval

Performances

Bollard Pull : 40 tons
Speed (Max.) : 12.3 knots

Dimensions

Length o.a. : 27.02 m
Beam o.a. : 9.65 m
Depth at sides : 3.60 m

Tank Capacities

Fuel Oil : 121.6 m3
Fresh Water : 30.10 m3
Luboil : 3.90 m3
Hydraulic Oil : 1.50 m3

Deck Layout

Anchor : 2 x 225kg Pool (H.H.P)
Deck Crane : HEILA 140-4SL, remote controlled
Anchor Winch : Ridderinkhof, waterfall
Towing Winch : 75T – 100t brake holding
Towing Wire : 1st drum 40mm x 750m
2nd drum 40mm x 400m
Tugger Winch : 8T 30m
Stern Deck : Hydraulic anchor pins x 3
Survey Moon Pool : Starboard Midships

Features

Accommodation : Heated and fully air-conditioned living spaces for 7 persons, consisting of three single and
two double crew cabin, a galley/mess & sanitary
facilities.

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
