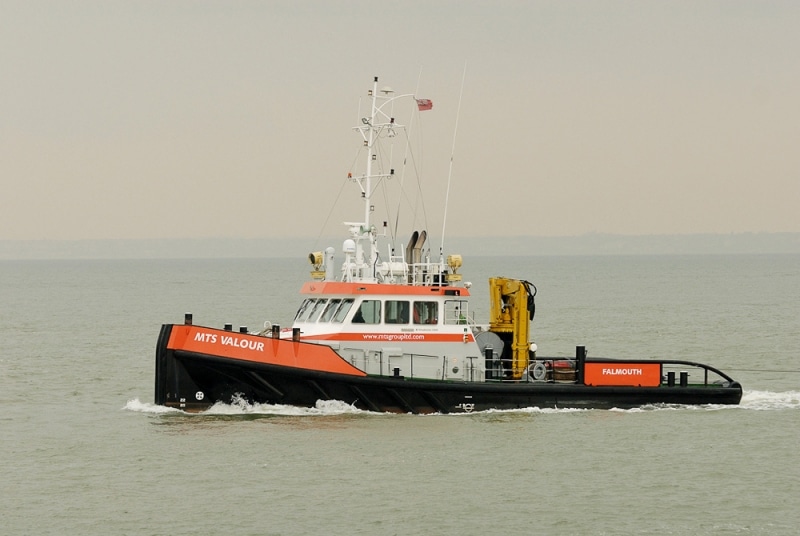

MTS Valour (UK)

General

Type of vessel : Damen Shoalbuster 2308
Builder : Damen Shipyards Hardinxveld – 2006
Basic functions : Towing, mooring, anchor handling, Dredging support
IMO Number : 9407299
Gross Tonnage : 126
Call sign : MPVV8

Propulsion System

Main Engines : 2 x CAT Type 3412D B TTA
Total Power : 1720 hp (1284 kW)
Gearboxes : 2 x Reintjes WAF 464 Ł/5,042:1
Propulsion : 2 x Promarin fixed pitch propellers
Diameter : 2 x 1600 mm in Optima nozzles
Bowthruster : 120 hp, hydraulically driven

Nautical & Communication Equipment

(GMDSS A300 EQUIPPED)
2 x Pesche 300w Searchlights
1 x Kotter type/ 1 x gyro compass
Furuno FR 8051 ARPA Radar
Furuno GP – 80 GPS system
2 x PCNAV Stations with Transas chart software
Radio Holland Seapilot Autopilot
Furuno FCV-582L Echo Sounder
2 x Sailor 5822 DSC – 2 x H/H VHF
JRC AIS SRH NAV -5 NAVTEX
Inmarsat C / SSB / phone / fax

Performances

Bollard Pull : 23 tons
Speed (Max.) : 11.5 knots

Dimensions

Length o.a. : 23.35 m
Beam o.a. : 8.65 m
Depth at sides : 2.99 m

Tank Capacities

Fuel oil : 45.50 m3
Fresh water : 13.90 m3
Luboil : 1.30 m3
Hydraulic oil : 0.90 m3

Deck Layout

Anchor : Pool (H.H.P.)
Chain : 19mm
Deck Crane : HEILA 80-3S, remote controlled
Anchor Winch : Ridderinkhof hydraulic
Towing Winch : 30T – 6m/min
Towing Wire : First drum 500m x 32mm / Second drum 300m x 32mm
Tugger Winch : 8T 30m
Stern Deck : Hydraulic anchor pins x 3

Features

Accommodation : Heated and fully air-conditioned living spaces for 7 persons, consisting of three single and
two double crew cabin, a galley/mess & sanitary
facilities

Auxiliary Equipment

Generator Sets : 1 x John Deere 6068TF 258 1 x Hatz 4L41C
Capacity : 60kva / 30kva, 50hz,220/380v
Transfer Pumps : For water and fuel: make SIHI
Fuel Separator : Alfa Laval

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
