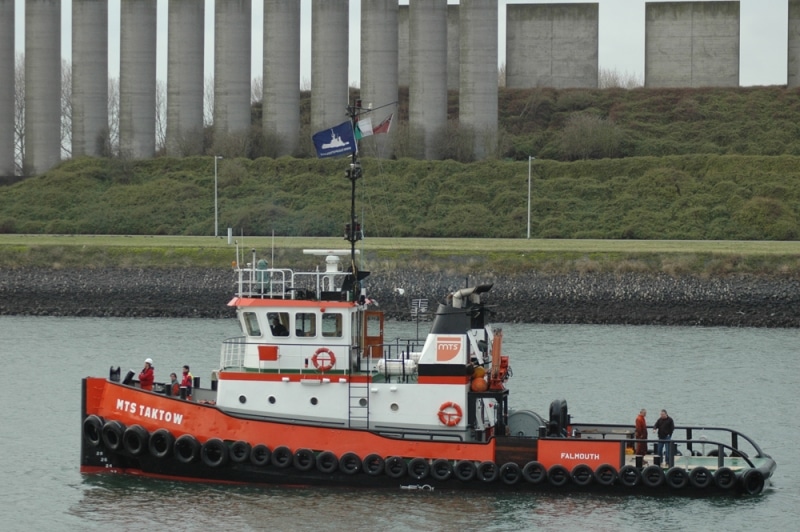

MTS Taktow (UK)

General
Type of Vessel : Damen Stantug Mk4
Yard Number : Damen Shipyards Gorinchem
Basic Functions : Ship & Barge Towing, mooring, Barge handling, anchor handling, dredging support
IMO Number : 8133827
Gross Tonnage : 109
Call sign : MBGN
Propulsion System
Main Engines : 2 x CAT Type V8 D379 TTA
Total Power : 1220 hp (955 kW)
Gearboxes : 2 x Reintjes 3,06:1
Propulsion : 2 x Promarin fixed pitch propellers
Diameter : 2 x 1550 mm in Kort nozzles
Auxiliary Equipment
Generator Sets : 2 x Caterpillar 220/380v
Capacity : 1 x 62 kva 1 x 68 kva
Transfer Pumps : For water and fuel
Performances
Bollard Pull : 18.2 tons
Speed (Max.) : 11.8 knots
Dimensions
Length o.a. : 22.50 m
Beam o.a. : 6.80 m
Depth at Sides : 3.44 m
Tank Capacities
Fuel Oil : 29.50 m3
Fresh Water : 5.60 m3
Lub Oil : 0.90 m3
Deck Layout
Anchor : 2 x Pool (H.H.P.)
Deck Crane : HIAB 5 tm
Anchor Winch : Twin hydraulic plus capstan
Anchor Handling : Twin drum Brussell winch
Towing Winch : 525m/100m 32mm wire
Capstan : 5 ton (Stern deck)
Stern Roller : 3360mm hd fixed
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.
Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com
Specification ID: 0 Revision: 0
