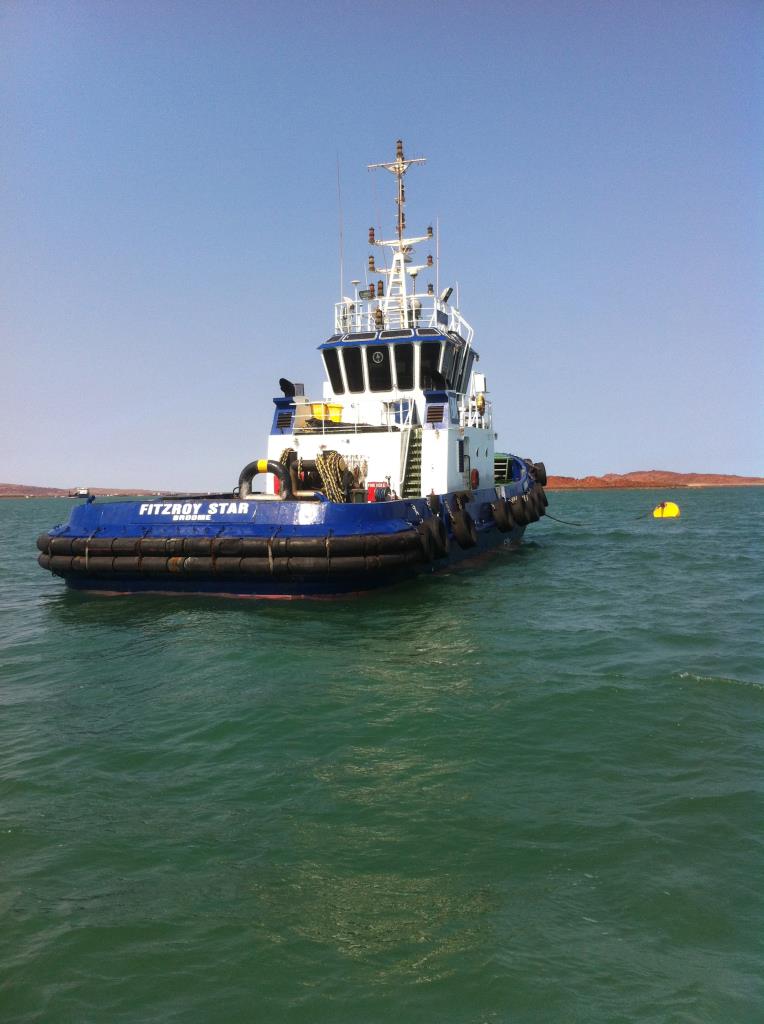

Fitzroy Star

Primary Information

Secondary Name: ASD
Vessel Type: Tug
Classification: Det Norske Veritas: +1A1 Tug
IMO: 9216860
MMSI: 503562300
Builder: New China Shipyard Ltd.
Build Location: China
Year Built: 1999
Flag: Singapore
Trading Area: Operational Areas including Offshore to 200 nm
Call Sign: VNW5922
M & H Number: 6172


Length Overall: 26 Metres
Beam: 8.6 Metres
Depth Moulded: 4.2 Metres
Design Draft: 3 Metres
GRT: 204 Tonnes
Dead Weight: 160 Tonnes


Propulsion: Aquamaster Azimuth Drives
Main Engines: 2x Caterpillar 3508
Total Power: 1492 KW
Gear Box: Azimuth Drives
Generator: 2x Caterpillar 415V/3 PH/50Hz

Speed and Consumption Performances

Full Operating Speed: 12 Kts
Economic Operating: 10 Kts
In Port: 150 Lts/Day
Bollard Pull: 25 Tonnes


Fuel: 95 Litres
Water: 32 Litres
Sullage: 1 Litres
Water Ballast: 36 Litres
Lube Oil: 1 Litres
Dirty Oil: 1 Litres


Tow Winch: 85 Tonnes


Berths: 10
Features: Air Conditioned

Nautical and Communication Equipment

Radar System: JRC JMA-2254
Depth Sounder: JRC FF-30
GPS: NWZ-4550
Compass: T-130V
Chart Plotter: Maxsea
HF Radio: JSB-196 SSB Radiotelephone
VHF Radio: 1x Icom-M411
Searchlight(s): Yes

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email:

Specification ID: 0 Revision: 0
