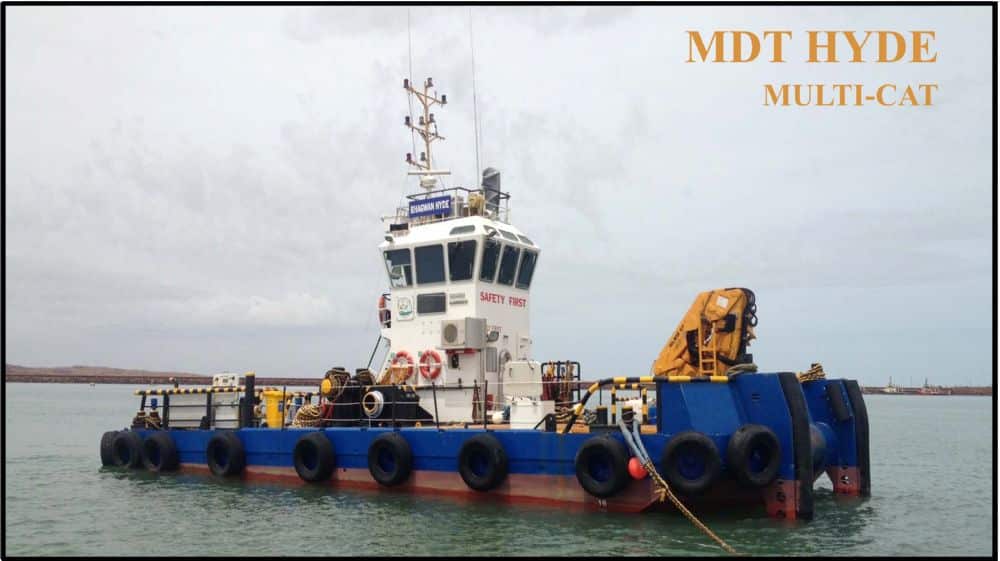

Hyde

BUILD DATE : Apr-11
BASIC FUNCTIONS : MULTI-PURPOSE WORK BARGE
CLASSIFICATION : DPI 2B

BOLLARD PULL AHEAD : 12.3 TON
SPEED : 9.0 KNOTS

LENGTH O.A. : 18.91 M
BEAM O.A. : 8.06 M
DEPTH AT SIDES : 2.75 M
DRAUGHT AFT : 2.10 M
DISPLACEMENT : 210 TON

MAIN ENGINES : 2X CATERPILLAR C-18 ACERT/A
TOTAL POWER : 666 BKW (894 BHP) AT 1800 RPM
GEARBOXES : 2X REINTJES WAF 164L 4.56:1
PROPULSION : 2X PROMARIN FIXED PITCH PROPELLERS (1350 MM PROP. DIAMETER)
NOZZLES : 2X VAN DE GIESSEN WITH ST.ST. INNERRING

TRANSFER PUMP : STERLING SIHI, AKHK 5101, 20M3/HR EACH
FRESH WATER : SET SPECK PY-2071/20
SEWAGE PUMP : LIBELLULA L1-3H, 6.6M3/HR AT 15 M.W.G.

ANCHOR : POOL HHP TYPE, 1X 105 KG AND 1X 48 KG
ANCHOR HANDLING WINCH : KRAAIJEVELD, 15 TON AT 5 M/MIN
DECK CRANE : HYDRAULIC ARE HEILA HLRM 65-5S LIFTING CAPACITY 7.1 TON AT 8.4M
A-FRAME/HYDRAULIC WINCH : 20 TON SWL; WINCH PULL FORCE 14TON
BOW ROLLER : DIAMETER 900MM-2500MM WIDTH
TOWING HOOK : SWL 15 TON
LIFE RAFT : RFD, 6 PERSONS

GENERATOR SET : CATERPILLAR C4.4 NA, 40 KVA, 230/400 V, 50Hz
ALARM SYSTEM : ENGINES, BILGE ALARM 2X STERLING VWSI5013, 24
BILGE PUMP/GS PUMP : M3/HR.1X MAIN ENGINE DRIVEN, 1X ELECTRICALLY DRIVEN
