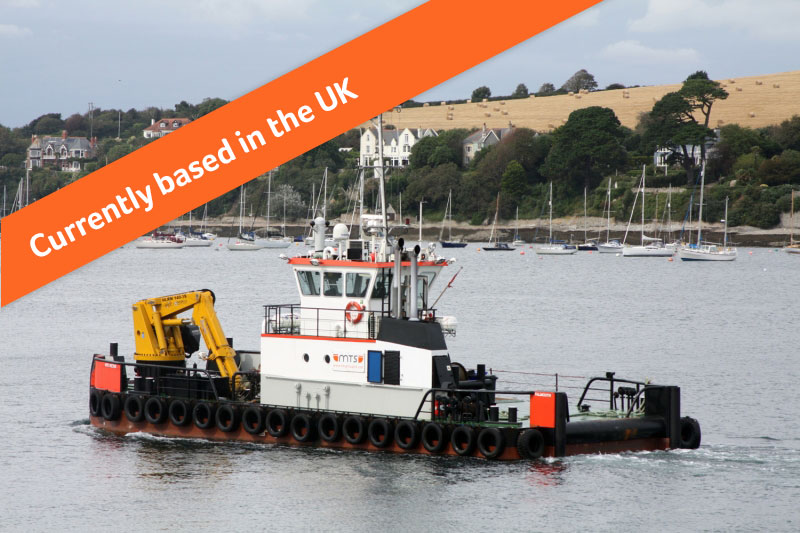

MTS Vector (UK)

General

Type of Vessel : Eurocarrier 2209
Builders : Neptune Marine Services B.V
Building Year : 2008
Basic Functions : Civil engineering support, dredging support, dive platform, construction equipment and materials delivery, offshore renewables, vibracoring & CPT, anchor handling
Classification : Bureau Veritas, MCA Cat 2

Propulsion System

Main Engines : 2 x Caterpiller C18
Total Power : 1200 hp
Propulsion : 2 x 4 blade fixed pitch propellers in nozzles
Diameter : 2 x 1350 mm

Auxiliary Equipment

Generator Sets : 2 x John Deere 81/85 kva

Performances

Speed (Max.) : 10 knots
Bollard Pull : 16 ton

Dimensions

Length o.a. : 21.6 mtr
Beam o.a. : 9.04 mtr
Draught aft : Approx 2.0 mtr (tanks 50% filled)

Tank Capacities

Fuel Oil (Day tank) : 12 m3
Fuel Oil (Transfer) : 45 m3
Fresh Water : 31 m3 (for transfer)

Deck Layout

Deck Crane : Helia 140 – 3S
Anchor Winch : 50 ton. low speed: 6mtr/min high speed: 21 mts/min
300m x 30mm wire
Tugger Winch : 10 Ton – 20mtr/min
Capstan : 4 ton
Deck : Clear deck area approx 95 m2
Store/Workshop : Approx 28 m2

Features

Extra Features :
5 mtr wide bow roller for anchor handling
Double push bow with rubber fender
Towing bit with quick release hook
Deck flood lights
Safety equipment for 9 passengers plus 3 crew
Accomodation :
For 6, all Air Conditioned
Bridge Equipment :
Sailor RT5022 VHF DSC
Furuno NX-700 Navtex
Transas 3000 ECDIS
Furuno FA-150 AIS
Furuno GP-150 GPS
Furuno SC-502 Satellite compass
Furuno FCV-585 Ecosounder
Furuno RDP-119 Radar
Furuno RDP-118 Radar
Sailor SC4150 Iridium satellite phone

Transfer Pumps

Diesel Fuel : 40 m3/hour
Fresh Water : 40 m3/hour

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
