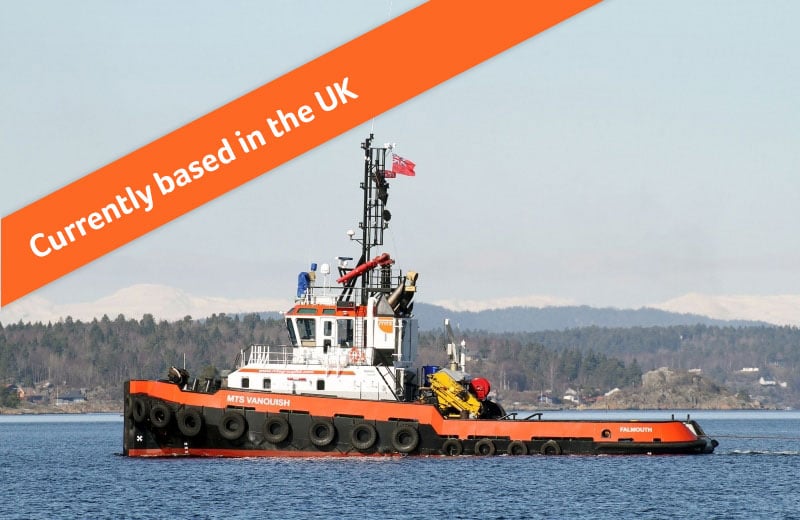

MTS Vanquish (UK)

General

Type of Vessel : Damen TugBuster 3009
Builder : Damen Shipyards Hardinxveld
Building Year : 2012
Basic Functions : Towing, mooring, Anchor handling, Dredging support, Salvage, Fire Fighting
Classifcation : Lloyds Register 100 A1 Anchor Handling Tug,
Unrestricted Service IMO Number : 9559573
Gross Tonnage : 272
Call sign : 2HFK5
Flag / Registry : UK. Falmouth

Dimensions

Length : o.a.29.24 m
Beam : o.a.9.00 m
Depth at sides : 4.40 m
Draught aft :

Propulsion System

Propulsion: Twin screw with steering nozzles
Main Engines: 2 x Yanmar 6AYM-ETE
Total Power: 0 KW
Gear Box: 2 x Yanmar YXH240L 5.91:1 ratio
Generator: 1 x Yanmar 50 kva & 1 x Cummins 100kva

Performances

Bollard Pull : 68.3 t bp
Speed (Max.) : 13.4 knots

Tank Capacities

Fuel Oil : 135.1 m3
Fresh Water : 20.6 m3
Luboil : 3.9 m3
Hydraulic Oil : 1.5 m3
Foam : 10.0 m3
Dispersant : 3.5 m3
Water Ballast : 27.0 m3

Auxiliary Equipment

Generator Sets : 2 x Caterpillar C-4.4 TA
Capacity : 2 x 107 kva
Transfer Pumps : For water & fuel: make SIHI, 32 m3/hr
Fuel Separator : Alfa Laval
Fi Fi Set : Caterpillar 3406E TA, 1200 m3/hr at 10.5 Bar with 2 x 600 m3/hr Water/Foam Monitors

Deck Layout

Anchor : 2 x 360 kg Pool (H.H.P)
Deck Crane : HEILA 25-4S, remote controlled
Anchor Winch : DMT – Double Drum
Anchor Handling : 40T – 120t brake holding
Towing Wire : 1st drum 48mm x 750m, 2nd drum 48mm x 500m
Tugger Winch : 8T 30m
AH/Towing Pins : Hydraulic Karmay 2 Forks, 2 Pins
Stern Roller : SWL 35 Ton
Push Bow : Full length push bow fitted

Features

Accomodation : Heated and fully air-conditioned living spaces for 8 persons, consisting of two single and three double crew cabin, a galley/mess & sanitary facilities
Naut & Com Equipt :

Nautical and Communication Equipment

Radar System: Yes
Depth Sounder: Yes
GPS: Yes
Compass: Yes
Chart Plotter: Yes
AIS: Yes
VHF Radio: Yes
Searchlight(s): Yes

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
