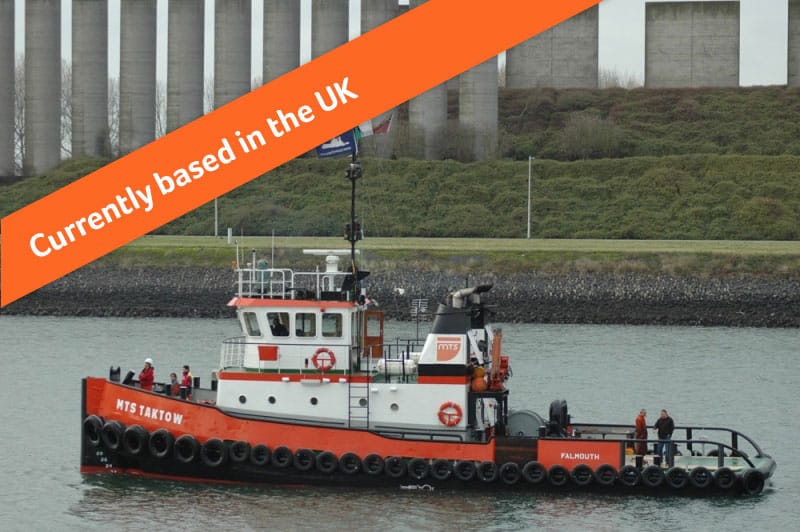

MTS Taktow (UK)

General

Type of Vessel : Damen Stantug Mk4
Yard Number : Damen Shipyards Gorinchem
Basic Functions : Ship & Barge Towing, mooring, Barge handling, anchor handling, dredging support
IMO Number : 8133827
Gross Tonnage : 109
Call sign : MBGN

Propulsion System

Main Engines : 2 x CAT Type V8 D379 TTA
Total Power : 1220 hp (955 kW)
Gearboxes : 2 x Reintjes 3,06:1
Propulsion : 2 x Promarin fixed pitch propellers
Diameter : 2 x 1550 mm in Kort nozzles

Auxiliary Equipment

Generator Sets : 2 x Caterpillar 220/380v
Capacity : 1 x 62 kva 1 x 68 kva
Transfer Pumps : For water and fuel

Performances

Bollard Pull : 18.2 tons
Speed (Max.) : 11.8 knots

Dimensions

Length o.a. : 22.50 m
Beam o.a. : 6.80 m
Depth at Sides : 3.44 m

Tank Capacities

Fuel Oil : 29.50 m3
Fresh Water : 5.60 m3
Lub Oil : 0.90 m3

Deck Layout

Anchor : 2 x Pool (H.H.P.)
Deck Crane : HIAB 5 tm
Anchor Winch : Twin hydraulic plus capstan
Anchor Handling : Twin drum Brussell winch
Towing Winch : 525m/100m 32mm wire
Capstan : 5 ton (Stern deck)
Stern Roller : 3360mm hd fixed

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.

Charter enquiries can be directed to our Commercial Department
Phone: +61 8 9965 9700 Fax: +61 8 9965 4545 Email: commercial@bhagwanmarine.com

Specification ID: 0 Revision: 0
