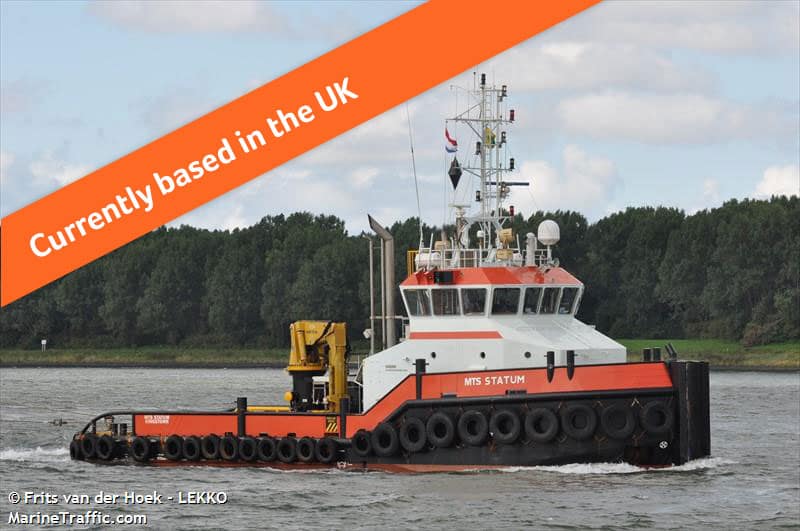

MTS Statum (UK)

General

Type of Vessel : Shoalbuster 3009
Builder : Damen Shipyards, The Netherlands
Building Year : 2008
Basic Functions : Towing, mooring, Anchor Handling, Dredging support, Salvage
Classification : Bureau Veritas I Hull MACH Tug Unrestricted Navigation AUT-UMS
IMO Number : 9510671
Gross Tonnage : 309
Call sign : J8B5265
Flag / Registry : St Vincent and The Grenadines, Kingstown

Propulsion System

Main Engines : 2 x Caterpillar CAT3512 B TA
Total Power : 2460 KW (3300hp)
Gearboxes : Rentjes WAF773L
Propulsion : Twin Screw Fixed Pitch Propellers
Diameter : 2 x 2250mm in Optima nozzles
Bow Thruster : 250 bhp (Hydraulic)

Nautical and Communication Equipment

(GMDSS) A1 to A3 Sea
2x 500w Searchlights
3x deck worklights
2x Radar
1x PC Station c/w with Navigation Chart Software
Autopilot
Furuno Echo Sounder
3x Fixed DSC – 2 xH/HVHFF
Navtex
HF – SSB / Mobile phone / Full Sat. Communication
AIS

Performances

Bollard Pull : 48 tons
Speed (Max.) : 11.6 knots

Dimensions

Length o.a. : 30.08m
Beam o.a. : 9.10m
Depth at sides : 4.40m
Draught aft : 5.2 m (max)

Tank Capacities

Fuel Oil : 175.00 m3
Fresh Water : 41.00 m3
Sewage : 3.30 m3
Luboil : 7.30 m3
Dirty Oil : 4.30 m3
Bilge Water : 4.30 m3

Deck Layout

Anchor : 2 x 300kg Pool HHP
Anchor Winch : Ridderinkhof Waterfall
Towing Winch : 100t – 50t Brake holding
1st Drum : 750m x 44mm
2nd Drum : 600m x 40mm
Tugger Winch : WK Hydraulics
Stern Roller : SWL 100t
Towing Pins : Hydraulic
Shark Jaw : Hydraulic 100t SWL
Deck Crane : Heila HLRM 170-3s
Push Bow : Full Length Rubber Fendered

Features

Accomodation : Heated and air conditioned living spaces for up to 10 persons, galley & sanitary facilities.

Auxiliary Equipment

Generator Sets : 2 x Caterpillar C-4.4 TA
Capacity : 2 x 107 kva 50Hz 230/400V AC
Hydraulic : 1 x Caterpillar C18 TA-B
Water Transfer : Water – Type VWSI/R35-63
Fuel Transfer : Fuel – Type VWSI/R35-63
Fuel Separator : Alfa Laval MAB 103

The data on this specification is published in good faith and for general information purpose only.
It does not warrant its accuracy or completeness and to the full extent allowed by law excludes liability.
